Portable
GC PID, Micro Gas Chromatograph
with Photoionization Detector Volatile Organic Compound Analysis for Air, Water and Soil Samples
The portable chromatograph can detect volatile organic compounds (VOCs) in air, water, and soil, delivering lab-quality results in less than 10 minutes. It is the only portable gas chromatograph that weighs less than 5lbs (2.2kgs).
Overview
The portable GC will detect chemicals as volatile as vinyl chloride in addition to semi-volatile organic compounds such as naphthalene. It can detect VOCs at sub-part-per-billion levels or at high part-per-million levels depending on its configuration.
Protable GC operators use it to determine trace amounts of suspected chemical contaminants without waiting for results from an offsite lab. Within ten minutes you’ll have an answer in the field and you’ll know how your cleanup is progressing. The protable GC can help you correct the job and fix it on the spot!
How to Use

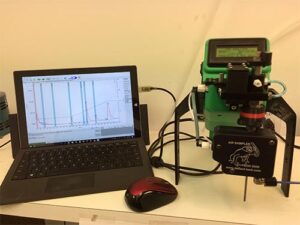

With A Computer
You can initiate an analysis on the FROG portable GC using a computer. Attaching the to a computer allows data to be studied in real-time with the Ellvin™ software.
on Its Own
You can use the portable GC on its own and start an analysis by pressing the toggle switch on the side.

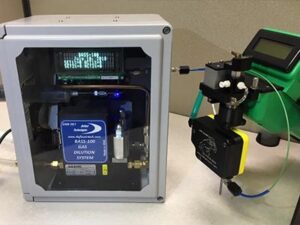

Calibrate It
You can calibrate the to detect a specific chemical and determine how much of that chemical is present.
Where to Use

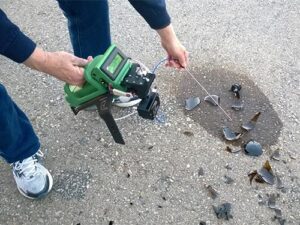

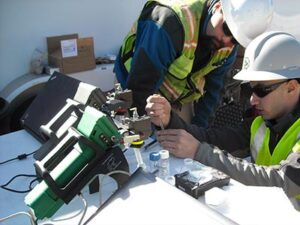

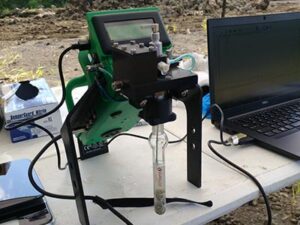

In The Field
The Portable GC is rugged enough to be used at the job site while attached to a computer or stand alone with results appearing on the display.
In A Laboratory
Use the Portable GC to save bench space and get results faster with shorter cleanup time. Save your big mass spec from wicked high samples too.
At Remediation Sites
The Portable GC can also be used to monitor your progress at remediation sites with quick, lab-quality results.
Who Uses
Environmental Consultant
Industrial Hygienist
Geologist
Where to Use
Air
The portable gas chromatograph can detect volatile organic compounds (VOCs) in air, delivering lab-quality results in less than 10 minutes.

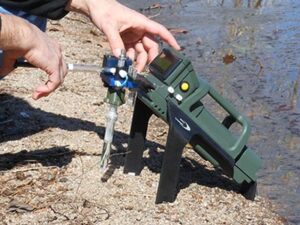

Water
The portable GC can detect volatile organic compounds in water as well. Water samples can be run onsite to reduce shipping and laboratory costs.

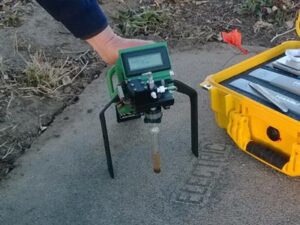

Soil
The can also analyze soil samples onsite, detecting volatile organic compounds in soils down to part-per-billion level concentrations.
- Chemical identification and concentration in under 10 minutes
- VOC Detection in Air, Water or Soil
- Included Software
- Highly Portable Micro-GC Technology makes a FROG smaller than a laptop computer
- No specialty gases required — never runs out of carrier gas in the field
- Easy to program GC temperature profile
- Simple calibration process
- Lithium Ion Battery
- 9 Hour Battery Life
- Battery-Life Indicator
- Built-In Battery Charger
- Quantitative results display on screen
- Chromatograms display real-time on computer
- Easy-to-use analysis software
- Ability to Set Flows in Software
- Simplified Air Sampler Installation
- Easy to Access PID
- Clearly Labeled Load/Analyze Valve Positions
- Toggle forward and Backward Through Results Display
- Removable micro-SD Card for Fast Data Transfer
Chemical Detection Range
- Chemical Detection Range
- Boiling Point @ 1 atm
- Vinyl Chloride (MW 62.5)
- -13.3 °C
- 2-Methyl Napthalene (MW 142.2)
- 244.7 °C
- Chemical Detection Range
- Vapor Pressure @ 25 °C
- Vinyl Chloride (MW 62.5)
- 2980 mmHg
- 2-Methyl Napthalene (MW 142.2)
- 0.067 mmHg
Instrument Specifications
PID Lamp
- 10.6 eV energy
GC Column
- 5.2 meter
Weight
- 4.8 lbs.
Dimensions
- 11 x 7.75 x 12 inches
Battery Life
- Nine hours, or external power
Interface Standard
- RS-232 port
- Benzene
- Toluene
- Ethylbenzene
- Xylenes
- Vinyl Chloride
- trans-1,2-Dichloroethene
- cis-1,2-Dichloroethene
- Trichloroethene (TCE)
- Tetrachloroethene (PCE)
- Naphthalene
- The FROG™ can also detect many other solvents
